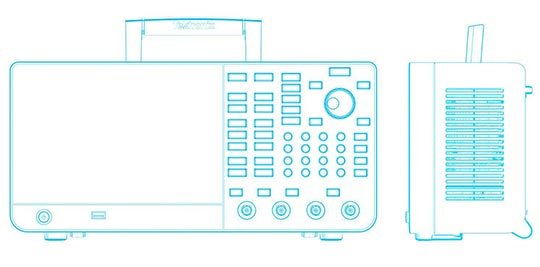

Tektronix AFG31021 25MHz Arbitrary Function Generator

The AFG31000 series with InstaView™ technology is the first high-performance AFG with built-in waveform generation applications, patented real-time wave monitoring, and a modern user interface.

Strength in numbers

• 1 or 2 channel models
• Output amplitude range 1 mVp-p to 10 Vp-p into 50Ω loads
• Basic (AFG) mode
  • 25 MHz, 50 MHz, 100 MHz, 150 MHz or 250 MHz sine waveforms
  • 250 MSa/s, 500 MSa/s, 1 GSa/s or 2GSa/s sample rate
  • 14-bit vertical resolution
  • Continuous, modulation, sweeping and burst run modes
  • 128 kpts arbitrary waveform memory in each channel

• Advanced mode
  • Continuous mode and optional sequence, triggered and gated modes
  • 16 Mpts arbitrary waveform memory in each channel (128 Mpts optional)
  • Up to 256 steps in sequence mode with loop, jump and wait events
  • Variable sample clock 1 µSa/s to 2 GSa/s
  • Minimum waveform length 168pts with granularity of 1 point
